Products |
 |
We specially do all kinds of magnetic filters and also support lifting magnets and permanent magnet lifter, permanent magnet, NdFeB, Ferrite, AlNiCo, FeCrCo and SmCo magnets, and all kinds of chucks. Magnetic filter is used in magnetizing water, air and fuel. It is used at home, in car, in agricultural and so on. Magnet, permanent magnet lifter, permanent magnet has many kind of applications, such as magnetic nip of calling card,magnetic button and so on. We can design new products, permanent magnet lifter, permanent magnet according to your requirement. Welcome your enquiry.
 Permanent
Magnet Lifter |
 |
 |
 |
| Principles: Permanent
Magnet Lifter has strong magnetic path produced by Nd-Fe-B magnetic
materials .On and off of the magnetic path is controlled by turning
the manual handle.Permanent magnetic lifters have magnet as power.and
its lifting power will never weaken.
Application: In loading and unloading ,the
lifter can hoist iron/steel blocks,cylinder and others onto magnetic
materials for linkage or connection.It is very convenient for application
in loading,unloading,and moving, permanent magnetic lifters are
the most ideal lifting facility for factories ,docks,warehouses
and transportation.
Features: Lightly and ingeniously structured,easy
for application,strong magnetic Attraction power and safe in handling. |
|

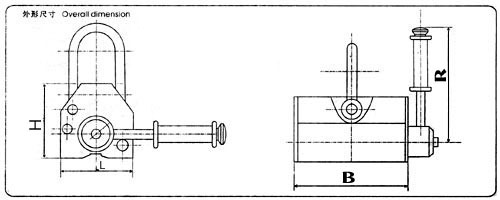

| Permanent Magnet lifter: |
 |
|
Modal |
Rated lifting
strength
(kgf) |
Cylindrical lifting strength
(kgf) |
Max pull-off
strength
(kgf) |
L |
B |
H |
R |
Operation
temperature
(°C) |
Dead Weight
(kg) |
CML100 |
100 |
50 |
300 |
62 |
96 |
72 |
126 |
<80 |
3 |
CML300 |
300 |
150 |
900 |
95 |
166 |
107 |
155 |
<80 |
13 |
CML600 |
600 |
300 |
1800 |
116 |
216 |
117 |
196 |
<80 |
23 |
CML1000 |
1000 |
500 |
3000 |
145 |
266 |
145 |
285 |
<80 |
44 |
CML2000 |
2000 |
1000 |
6000 |
180 |
364 |
180 |
426 |
<80 |
63 |
CML3000 |
3000 |
1500 |
9000 |
224 |
418 |
243 |
521 |
<80 |
180 |
CML5000 |
5000 |
2500 |
15000 |
363 |
653 |
250 |
180 |
<80 |
460 |
|
|
|
